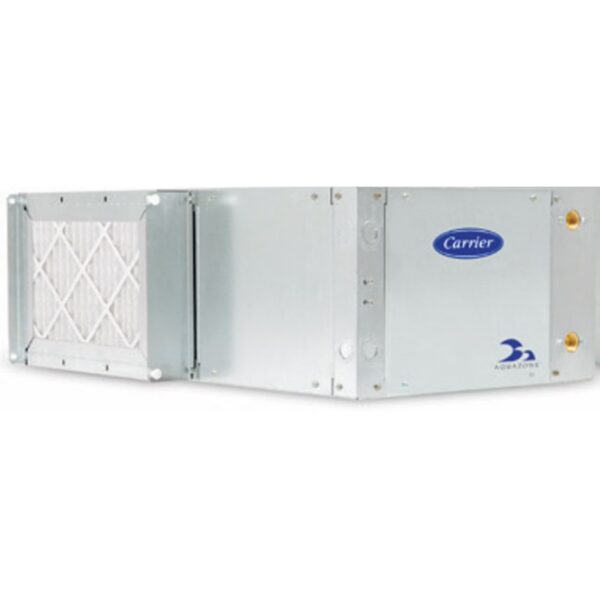

50PCH048ZCC3ECC1 – Carrier Aquazone – 4 Ton Compact Water Source Heat Pumps Horizontal Right Return (208/230-1-60)

Description 50PCH048ZCC3ECC1 50PCH = Horizontal Configuration Aquazone™ Compact Water Source Heat Pump 048 = 4 Ton Z = Right/Return Left/Discharge PSC/Blower Motor C = Standard C Microprocessor Control C = Standard Non-Coated Copper Air Coil 3 = 208/230-1-60 E = Current Revision C = None C = Standard Range (50 to 100 F) 1 = None Single-package horizontally and vertically mounted water source heat pumps (WSHPs) with solid-state controls. Unique double isolation compressor mounting via vibration isolating rubber grommets for quiet operation Copeland scroll compressors (rotary 007-015, reciprocating 018-042, scroll 048-070) Suitable for geothermal (with extended range option) and boiler/tower use with an operating temperature range of 25 to 110 F Hot gas reheat (HGR) available for dehumidification capability Backward compatibility for replacing older units from various manufacturers Field convertible discharge air arrangement for horizontal units Permanent split capacitor (PSC) three-speed fan motor Internally trapped condensate drain line (vertical units only) Flexible and reliable multiple protocol WSHP Open controller can use BACnet, Modbus, N2, and LonWorks protocols for integrating energy efficiency and precise unit control Mute package for quiet operation Optional tin-plated copper tubing and polymer coated aluminum fin evaporator coil available Non-ozone depleting Puron® refrigerant (R-410A) Specifications Dimensions Length 54.5 Inches (in) Width 25 Inches (in) Height 21 Inches (in) Weight 274 Pounds (lbs) Attributes Air Flow Direction Horizontal Blower Motor HP 3/4 HP Blower Motor Speeds 3 (Three) Blower Motor Type PSC (Permanent Split Capacitor) Brand Carrier CBU – Compressor Bearing Unit Yes CFM 1600 COP 3.4-4.3 Color Silver Cooling Capacity 45900-48800 Cooling Rated Capacity (Btu/h) 48000 Country of Origin USA Cubic Measurement 16.5582 Cycle/Hertz 60 Hz Drain Connection Size 3/4″ EER 13-14.9 ETL Listed Yes Energy Star Rated No Heating Capacity 39300-58600 Locked Rotor Amps (LRA) 130 Maximum Overcurrent Protection (MOCP) 35 OPT Code 1P50PCH048ZCC3ECC1 Phase Single Product Family 50PCH Prop 65 Yes Rated Load Amps (RLA) 19.6 Refrigerant R-410A Stage Two Tonnage 4 UL Listed No Voltage 208-230 VAC
