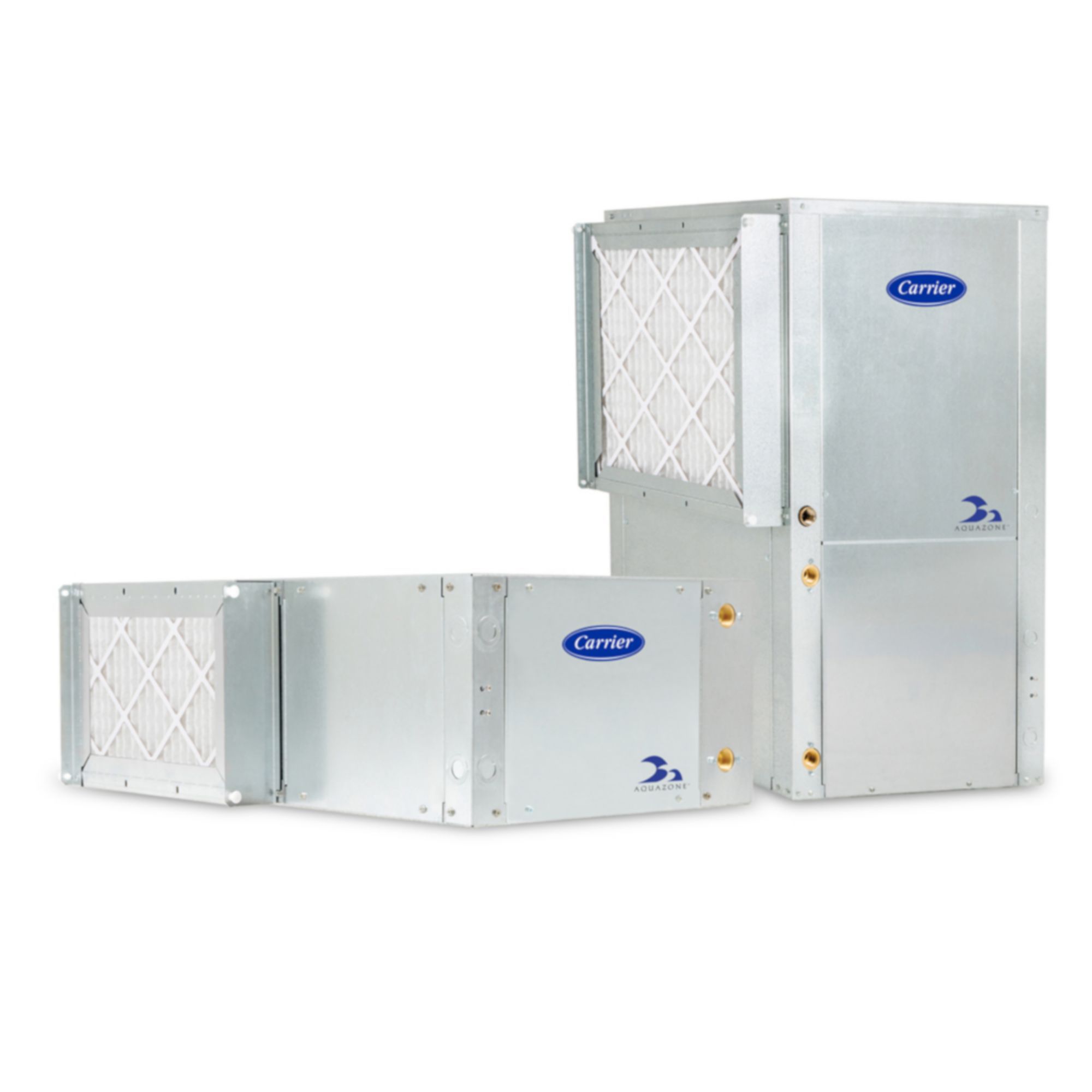

50PCH042PCC6ECC8 Carrier Aquazone – 3.5 Ton Compact Water Source Heat Pumps, Horizontal Right Return (460-3-60)

Description 50PCH042PCC6ECC8 Carrier Aquazone – 3.5 Ton Compact Water Source Heat Pumps, Horizontal Right Return (460-3-60) – E:Mail: [email protected] to confirm availability or for volume discounts 50PCH042PCC6ECC8 50PCH = Horizontal Configuration Aquazone™ Compact Water Source Heat Pump 042 = 3-1/2 Ton P = Right/Return Back/Discharge Constant Torque ECM/Blower Motor C = Standard C Microprocessor Control C = Standard Non-Coated Copper Air Coil 6 = 460-3-60 E = Revision E C = None C = Standard Range (50 to 100 F) 8 = MERV 8 Filter Single-package horizontally and vertically mounted water source heat pumps (WSHPs) with solid-state controls. Unique double isolation compressor mounting via vibration isolating rubber grommets for quiet operation Copeland scroll compressors (rotary 007-015, reciprocating 018-042, scroll 048-070) Suitable for geothermal (with extended range option) and boiler/tower use with an operating temperature range of 25 to 110 F Hot gas reheat (HGR) available for dehumidification capability Backward compatibility for replacing older un Attributes Air Flow Direction Horizontal Approvals ETL Listed Blower Motor HP 3/4 Blower Motor Speeds 5 Blower Motor Type ECM (Electronically Commutated Motor) Blower Wheel Diameter 10″ Blower Wheel Width 8″ Brand Carrier® CFM 1,380 COP 3.4-4.6 Color Silver Compressor Type Scroll Cooling Capacity 40,500-42,100 Country of Origin USA Cycle/Hertz 60 Hz Drain Connection Size 3/4″ EER 14.2-16.6 Energy Star Rated NO Heating Capacity 29,000-41,800 Locked Rotor Amps (LRA) 44 Maximum Overcurrent Protection (MOCP) 15 OPT Code 1P50PCH042PCC6ECC8 Phase Three Product Family 50PCH Prop 65 YES Rated Load Amps (RLA) 5.6 Refrigerant R-410A Return Air Filter Size (RA) in Inches (W x H x D) 18 x 30 x 1 Stages Cooling 1 Tier Aquazone™ Tonnage 3.5 UPC See Optical Voltage 460 VAC
